Introduction

We live in the data era, where every organization invests significant resources in securing its IT infrastructure. Protecting data is crucial because modern businesses rely heavily on data analysis. Ensuring the security of sensitive data has become the primary responsibility of security engineers and database administrators. Due to the critical nature of this data, hackers often attempt to gain control through :

  • SQL Injection Attacks
  • Compromised Accounts

Even though OCI introduced Web Application Firewalls (WAFs) to mitigate SQL injection attacks, attackers can still bypass these pattern-matching techniques. Allowlist-based and network-based SQL firewalls offer stronger protection but are ineffective for local and encrypted traffic. Moreover, they require more run-time context to thoroughly analyze SQL queries.

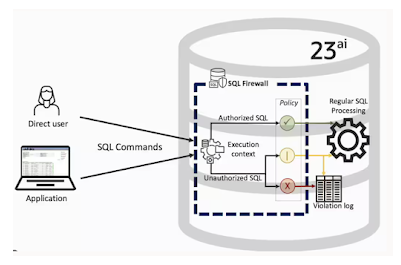

firewall

In this article, I will demonstrate how to enable the firewall and block suspicious access.

For testing the SQL firewall functionality created below-mentioned users.

  • Main Schema: Scott
  • User: Chanaka

A separate SQL Developer session for the database will be needed for the user Chanaka.



Initial Setup

Here are the scripts used to create the Scott and Chanaka schemas.



Create Scott Schema:

SQL> CREATE USER SCOTT identified by ******** default tablespace DATA temporary tablespace TEMP;

User created.

ALTER USER SCOTT quota unlimited on DATA;

GRANT CONNECT, RESOURCE TO SCOTT;

create table dept(
  deDowntime: Upgrades and patching can require system downtime, which may affect business operations.ptno   number(2,0) not null,
  dname    varchar2(14),
  loc      varchar2(13));
create table emp( empno number(4,0) not null,
  ename    varchar2(10),
  job      varchar2(9),
  mgr      number(4,0),
  hiredate date,
  sal      number(7,2),
  comm     number(7,2),
  deptno   number(2,0) not null);
create table bonus( ename varchar2(10),
  job      varchar2(9),
  sal      number,
  comm     number);
create table salgrade(
  grade    number,
  losal    number,
  hisal    number);
create table dummy (
  dummy    number);
insert into dummy values (0);
insert into DEPT (DEPTNO, DNAME, LOC)
  select 10, 'ACCOUNTING', 'NEW YORK' from dummy union all
  select 20, 'RESEARCH',   'DALLAS'   from dummy union all
  select 30, 'SALES',      'CHICAGO'  from dummy union all
  select 40, 'OPERATIONS', 'BOSTON'   from dummy;
insert into emp (EMPNO, ENAME, JOB, MGR, HIREDATE, SAL, COMM, DEPTNO)
  select 7839, 'KING',   'PRESIDENT', null, to_date('17-11-1981','dd-mm-yyyy'),    5000, null, 10 from dummy union all
  select 7698, 'BLAKE',  'MANAGER',   7839, to_date('1-5-1981','dd-mm-yyyy'),      2850, null, 30 from dummy union all
  select 7782, 'CLARK',  'MANAGER',   7839, to_date('9-6-1981','dd-mm-yyyy'),      2450, null, 10 from dummy union all
  select 7566, 'JONES',  'MANAGER',   7839, to_date('2-4-1981','dd-mm-yyyy'),      2975, null, 20 from dummy union all
  select 7788, 'SCOTT',  'ANALYST',   7566, to_date('13-JUL-87','dd-mm-rr') - 85,  3000, null, 20 from dummy union all
  select 7902, 'FORD',   'ANALYST',   7566, to_date('3-12-1981','dd-mm-yyyy'),     3000, null, 20 from dummy union all
  select 7369, 'SMITH',  'CLERK',     7902, to_date('17-12-1980','dd-mm-yyyy'),     800, null, 20 from dummy union all
  select 7499, 'ALLEN',  'SALESMAN',  7698, to_date('20-2-1981','dd-mm-yyyy'),     1600,  300, 30 from dummy union all
  select 7521, 'WARD',   'SALESMAN',  7698, to_date('22-2-1981','dd-mm-yyyy'),     1250,  500, 30 from dummy union all
  select 7654, 'MARTIN', 'SALESMAN',  7698, to_date('28-9-1981','dd-mm-yyyy'),     1250, 1400, 30 from dummy union all
  select 7844, 'TURNER', 'SALESMAN',  7698, to_date('8-9-1981','dd-mm-yyyy'),      1500,    0, 30 from dummy union all
  select 7876, 'ADAMS',  'CLERK',     7788, to_date('13-JUL-87', 'dd-mm-rr') - 51, 1100, null, 20 from dummy union all
  select 7900, 'JAMES',  'CLERK',     7698, to_date('3-12-1981','dd-mm-yyyy'),      950, null, 30 from dummy union all
  select 7934, 'MILLER', 'CLERK',     7782, to_date('23-1-1982','dd-mm-yyyy'),     1300, null, 10 from dummy;
insert into salgrade
  select 1,  700, 1200 from dummy union all
  select 2, 1201, 1400 from dummy union all
  select 3, 1401, 2000 from dummy union all
  select 4, 2001, 3000 from dummy union all
  select 5, 3001, 9999 from dummy;
commit;

Create User Chanaka:

SQL> alter session set container=C23AI_PDB;

Session altered.

SQL> CREATE USER CHANAKA identified by ****** default tablespace USERS temporary tablespace TEMP;

User created.

########## Grants
grant create session to chanaka;
GRANT SELECT ON SCOTT.dept TO chanaka;
GRANT SELECT ON SCOTT.emp TO chanaka;
GRANT SELECT ON SCOTT.bonus TO chanaka;
GRANT SELECT ON SCOTT.salgrade TO chanaka;



Configure Firewall

The next step is to enable the firewall by executing the following command:

SQL> exec dbms_sql_firewall.enable;

PL/SQL procedure successfully completed.

SQL>



Validate Firewall Status

SQL firewall can be validated from the dba_sql_firewall_status table.

SQL> select status from   dba_sql_firewall_status;

STATUS
--------
ENABLED

SQL>

You can enable capture and execute a few queries from both SQL Developer and SQL*Plus sessions as the user CHANAKA.

Enable Capture:

begin
  dbms_sql_firewall.create_capture (
    username => 'CHANAKA',
    top_level_only => true,
    start_capture => true);
end;
/

Before stopping the capture, ensure that all executed operations are recorded. You can validate the capture by running the following command. The capture logs will show the operations that have been recorded. In addition to the SQL text, various session attributes will also be logged.

set linesize 150 pagesize 40
column command_type format a12
column current_user format a15
column client_program format a45
column os_user format a10
column ip_address format a10
column sql_text format a30

select command_type,
       current_user,
       client_program,
       os_user,
       ip_address,
       sql_text
from   dba_sql_firewall_capture_logs
where  username = 'CHANAKA';



Sample Output:

SQL> set linesize 150 pagesize 40
column command_type format a12
SQL> SQL> column current_user format a15
SQL> column client_program format a45
column os_user format a10
column ip_address format a10
column sql_text format a30

select command_type,
       current_user,
       client_program,
SQL>        os_user,
       ip_address,
       sql_text
from   dba_sql_firewall_capture_logs
where  username = 'CHANAKA';SQL> SQL> SQL> SQL>   2    3    4    5    6    7    8

COMMAND_TYPE CURRENT_USER    CLIENT_PROGRAM                                OS_USER    IP_ADDRESS SQL_TEXT
------------ --------------- --------------------------------------------- ---------- ---------- ------------------------------
SELECT       CHANAKA         SQL Developer                                 opc        10.0.0.43  SELECT * FROM SCOTT.EMP
EXECUTE      CHANAKA         SQL Developer                                 opc        10.0.0.43  BEGIN SYS.DBMS_UTILITY.NAME_RE
                                                                                                 SOLVE (:1,:2,:3,:4,:5,:6,:7,:8
                                                                                                 ); END;

SELECT       CHANAKA         SQL Developer                                 opc        10.0.0.43  SELECT * FROM SCOTT.SALGRADE


SELECT       CHANAKA         SQL Developer                                 opc        10.0.0.43  SELECT * FROM SCOTT.BONUS
EXECUTE      CHANAKA         SQL Developer                                 opc        10.0.0.43  BEGIN DBMS_UTILITY.EXPAND_SQL_
                                                                                                 TEXT (INPUT_SQL_TEXT => :SQL,O
                                                                                                 UTPUT_SQL_TEXT => :X); END;

SELECT       CHANAKA         SQL Developer                                 opc        10.0.0.43  SELECT :"SYS_B_0" TYPE,OWNER,T
                                                                                                 ABLE_NAME OBJECT_NAME,COLUMN_N

Once everything is captured, you can stop the capturing process. Use below below-mentioned command to stop the capture process.

exec dbms_sql_firewall.stop_capture('CHANAKA');

The next step is to generate the allowed list.

exec dbms_sql_firewall.generate_allow_list ('CHANAKA');



Check the allow-list contents

Get allow-list IP address

SQL> select *
from   dba_sql_firewall_allowed_ip_addr
where  username = 'CHANAKA';  2    3

USERNAME                          IP_ADDRESS
-------------------------------- ------------
CHANAKA                           10.0.0.43

Get allow-list OS – Program

SQL> select *
from   dba_sql_firewall_allowed_os_prog
where  username = 'CHANAKA';  2    3

USERNAME   OS_PROGRAM
---------- ------------------------------
CHANAKA    SQL Developer

Get allow-list SQL- Text

column sql_text format A100

select current_user,
       sql_text
from   dba_sql_firewall_allowed_sql
where  username = 'CHANAKA';

CURRENT_USER    SQL_TEXT
--------------- ----------------------------------------------------------------------------------------------------
CHANAKA         SELECT * FROM SCOTT.EMP
CHANAKA         BEGIN SYS.DBMS_UTILITY.NAME_RESOLVE (:1,:2,:3,:4,:5,:6,:7,:8); END;
CHANAKA         SELECT * FROM SCOTT.SALGRADE

CHANAKA         SELECT * FROM SCOTT.BONUS
CHANAKA         BEGIN DBMS_UTILITY.EXPAND_SQL_TEXT (INPUT_SQL_TEXT => :SQL,OUTPUT_SQL_TEXT => :X); END;

Enforce Types

We enforce the allow list using the ENABLE_ALLOW_LIST procedure. The type of enforcement is determined by the constant used:

  • ENFORCE_CONTEXT: Enforces only the context (IP Address, OS User, and OS Program) allow-list
  • ENFORCE_SQL: Enforces only the SQL allow-list
  • ENFORCE_ALL: Enforces both the context and SQL allow-lists



Blocking

To block access, you need to remove the capture result from the allow list. For testing purposes, I will remove the IP address from the allowed list.

SQL> begin
  dbms_sql_firewall.delete_allowed_context (
    username     => 'CHANAKA',
    context_type => dbms_sql_firewall.ip_address,
    value        => '10.0.0.43');
end;
/  2    3    4    5    6    7

PL/SQL procedure successfully completed.

SQL>

Let’s assume some unknown party trying to access the database using IP address: 10.0.0.43.

firewall2

Figure 1: New database connection

firewall3

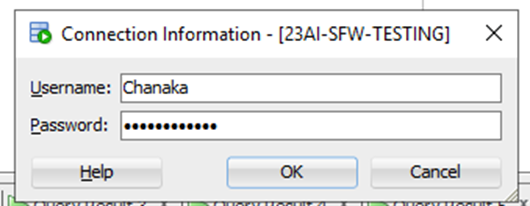

Figure 2: New database connection – 02

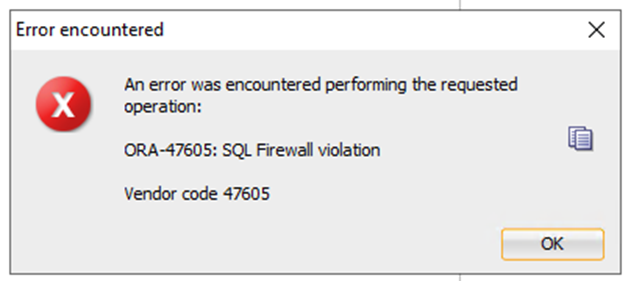

Figure 3: shows ORA-47605: SQL Firewall violation when attempting to start a new session

firewall4

Figure 3: ORA- Error



Disable the entire allowed list

SQL> exec dbms_sql_firewall.disable_allow_list ('CHANAKA');

PL/SQL procedure successfully completed.



Conclusion

In conclusion, the SQL Firewall provides robust security measures by monitoring and controlling SQL statements executed in your database environment. It offers comprehensive insights into SQL activities, detects potential threats, and enforces security policies to protect your data. Utilizing the SQL Firewall, you can ensure a secure and compliant database environment.
